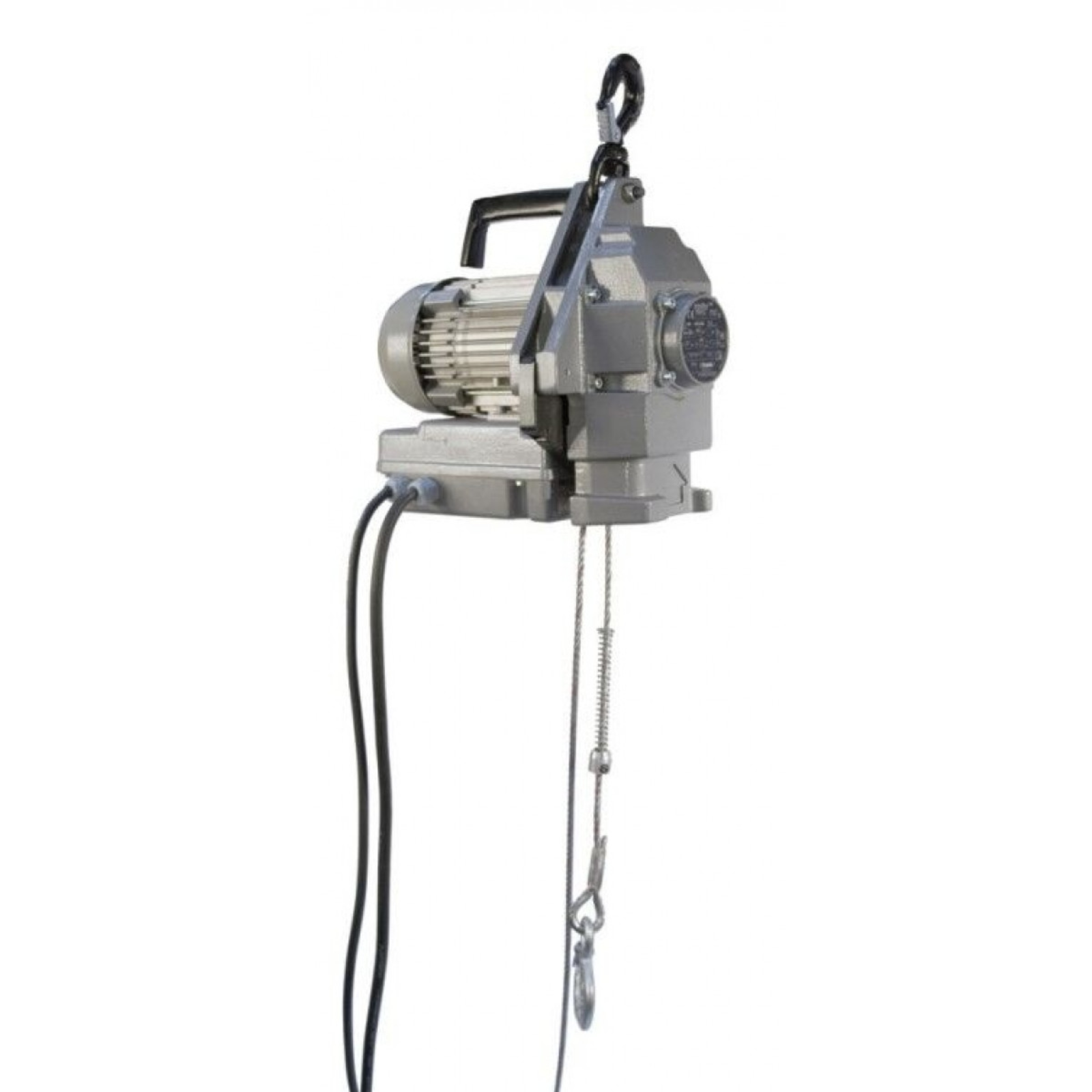

Tractel TR50 Minifor Hoist

TR50 Minifor Hoists are electric wire winches for lifting and lowering loads up to 500kg. These lightweight and compact units are quick and easy to set up, and a popular machine on construction sites.

These hoists are supplied with either 20m or 40m 6.5mm diameter wire ropes depending on your requirements. The rope comes on a separate coil and is fed into the hoist which grips the wire.

If 500kg isn't sufficient for your lifting requirement, please talk to us about supplying a sheaving kit that can increase the lifting capacity of this hoist to 950kg. Note that by using a sheaving kit you will need twice the length of rope as the height of lift.

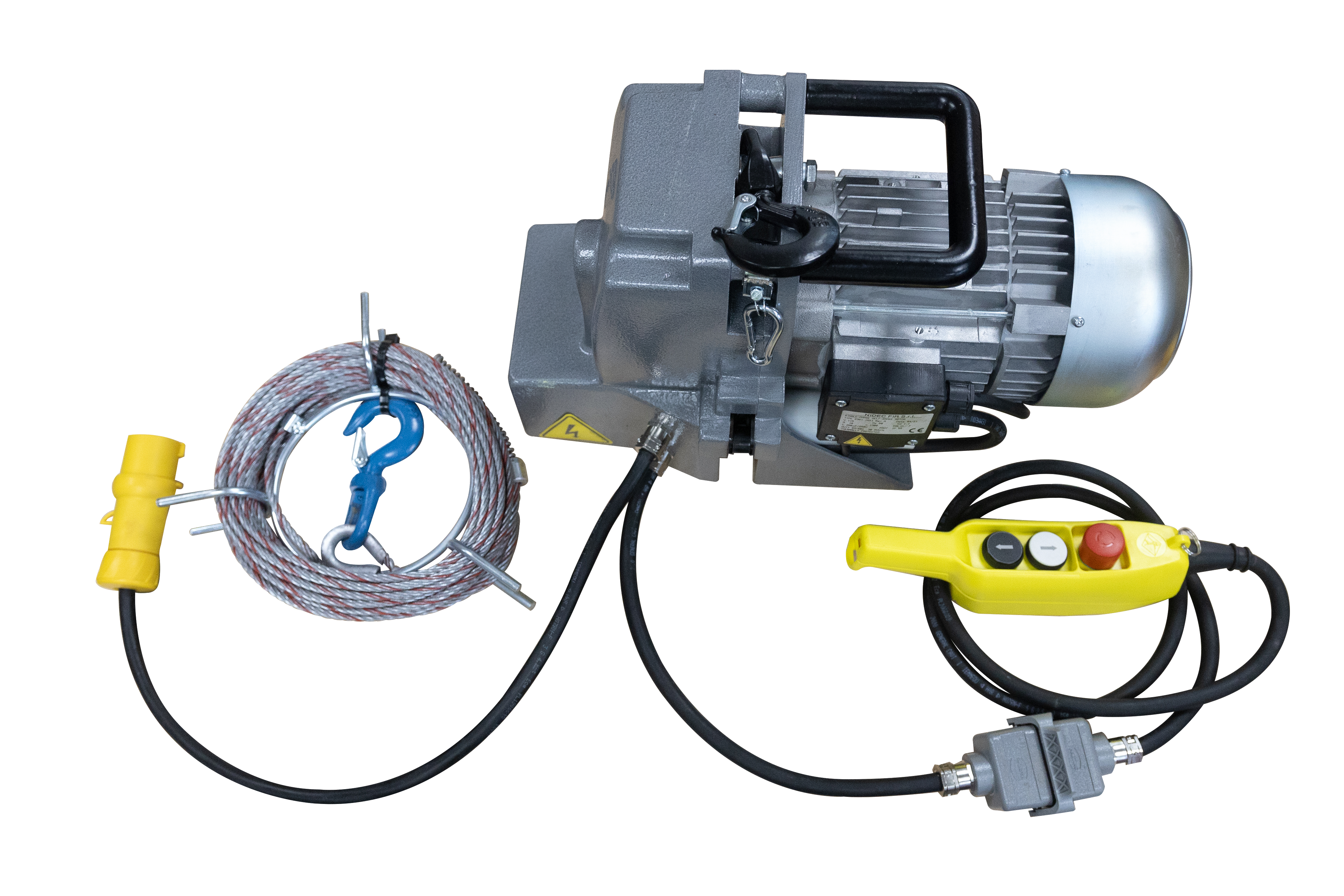

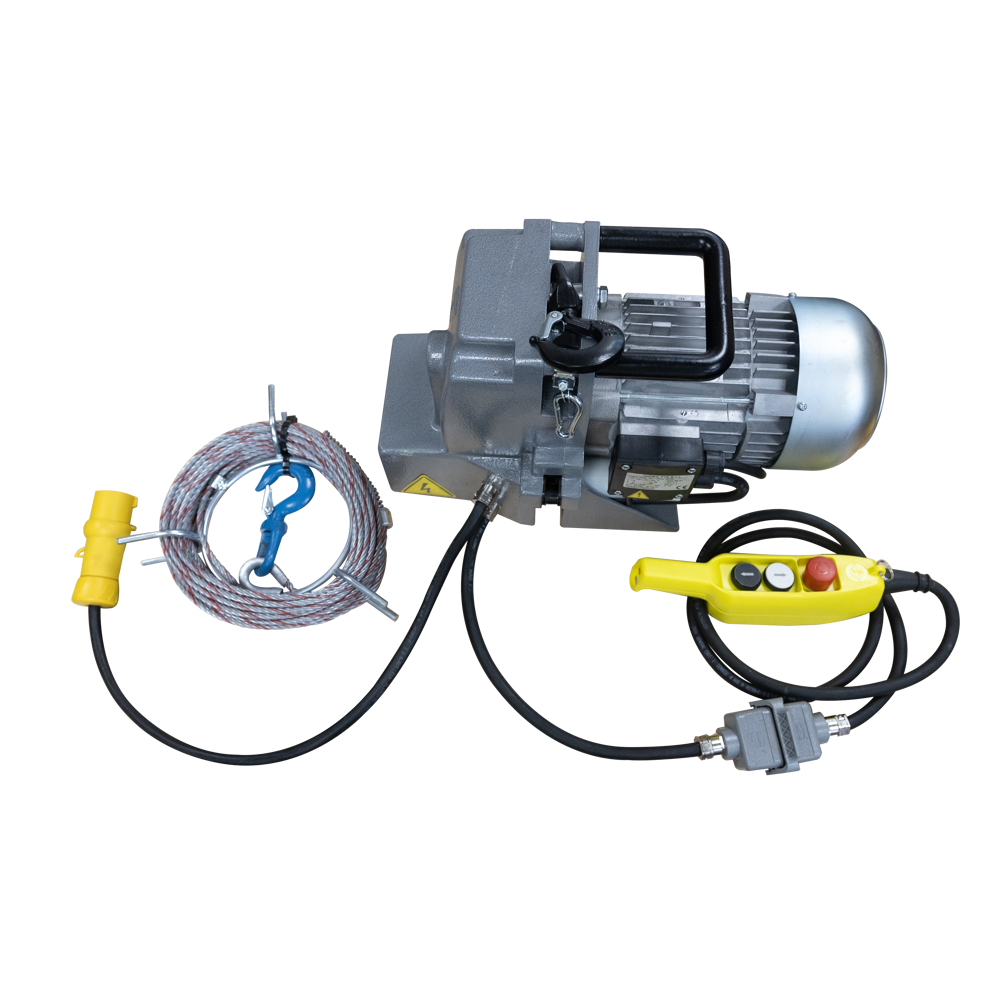

They are operated by a pendant control that can either be attached to the machine via a 2.5m wire, or remote controlled pendants are available. The pendant control features two directional buttons and an emergency stop for safety.

• Load capacity: 500kg, or 950kg with a sheaving kit
• Speed: 7 metres per minute, or 3.5m per minute with a sheaving kit
• Control pendant features up, down, and emergency stop buttons
• Reliable, trusted brand
